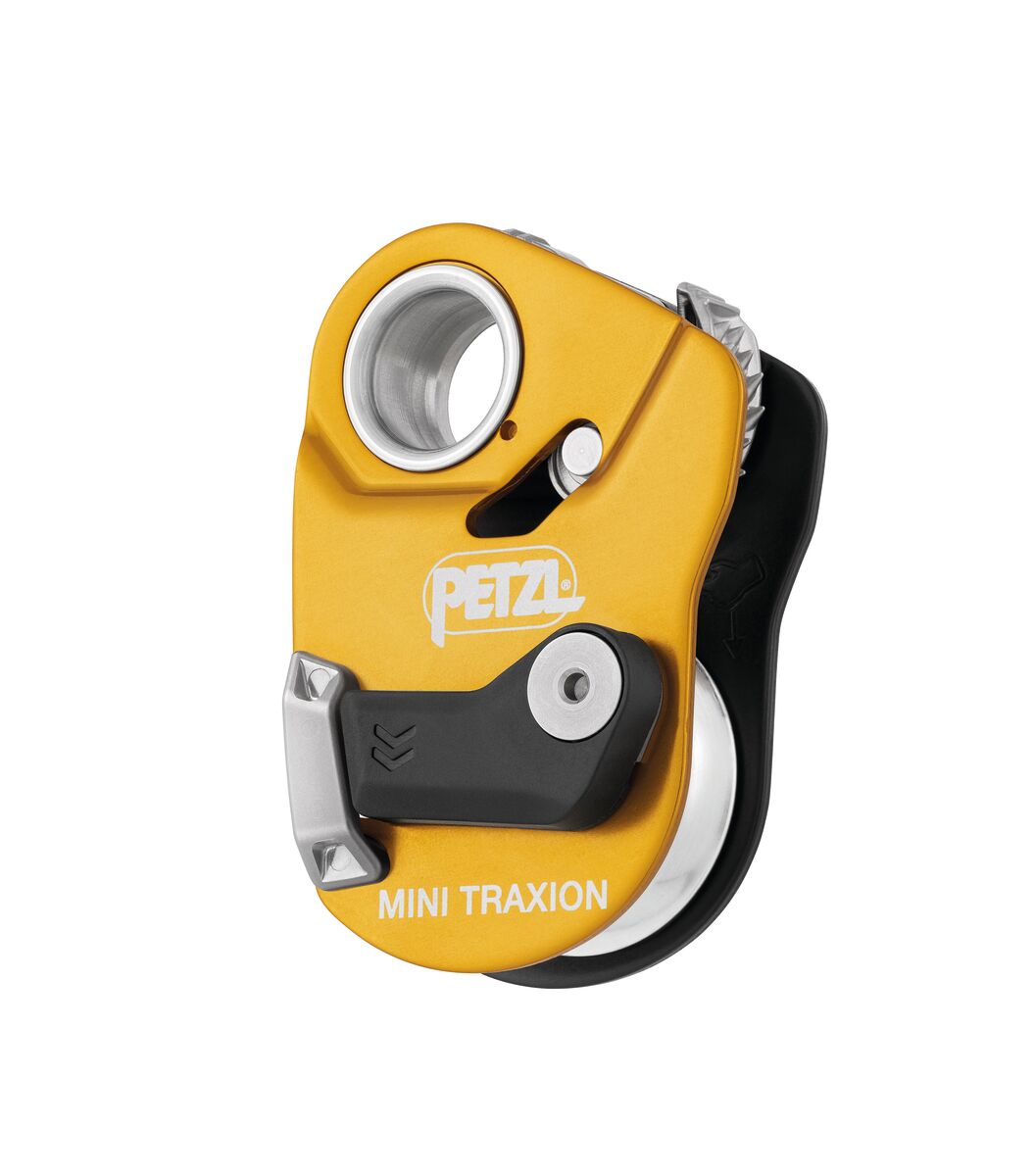

Mini Traxion Progress Capture Pulley

Designed for hauling and rescue, MINI TRAXION is an openable progress-capture pulley that allows the rope to be installed while the pulley is connected to the anchor. The large-diameter sheave mounted on sealed ball bearings provides excellent efficiency (93 %). The cam can be locked in the open position so the device can be used as a simple pulley.

High-efficiency progress-capture pulley designed for hauling and rescue: - Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency (93 %), even when hauling heavy loads - Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty - For use on 7 to 11 mm diameter ropes Simple to use: - Openable side plate allows the rope to be easily installed while the pulley is connected to the anchor, limiting the risk of dropping it - Triple-action opening of the moving side plate is quick and easy, even with gloves - May be used as a simple pulley by locking the cam in the raised position - Compact and lightweight (150 g) Durable: - Special side plate design protects the rope path - Stainless steel toothed cam for optimal durability Specifications Weight: 150 g Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, NFPA 2500 Technical Use Pulley and Rope grab, XF 494: FZL-Z-Q 8.5/11, XF 494: FZL-H-Q 8.5/11 Material(s): Aluminum, stainless steel, nylon Min. rope diameter: 7 mm Max. rope diameter: 11 mm Sheave type: Sealed ball bearings Sheave diameter: 32 mm Working load: 2 x 2.5 = 5 kN Breaking strength: 2 x 10 = 20 kN Working load as progress capture pulley: 2,5 kN Breaking strength as progress capture pulley: 4 kN Efficiency: 93 % Compatible with the RAD LINE 6 mm cord Compatible with the PUR’LINE 6 mm cord only for hauling a pack
